Implementing Cisco Enterprise Advanced Routing and Services (ENARSI): 300-410

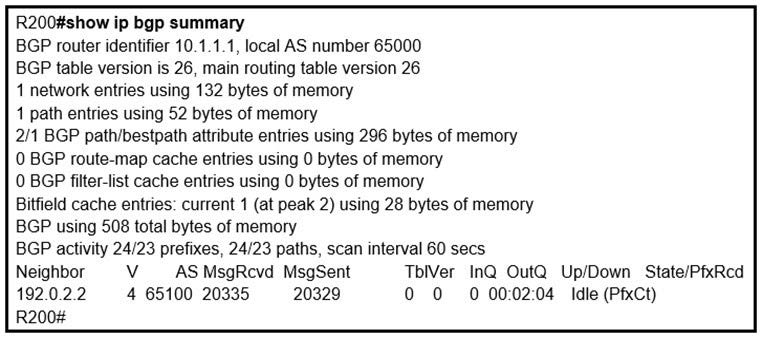

Refer to the exhibit.

In which circumstance does the BGP neighbor remain in the idle condition?

A. if prefixes are not received from the BGP peer

B. if prefixes reach the maximum limit

C. if a prefix list is applied on the inbound direction

D. if prefixes exceed the maximum limit

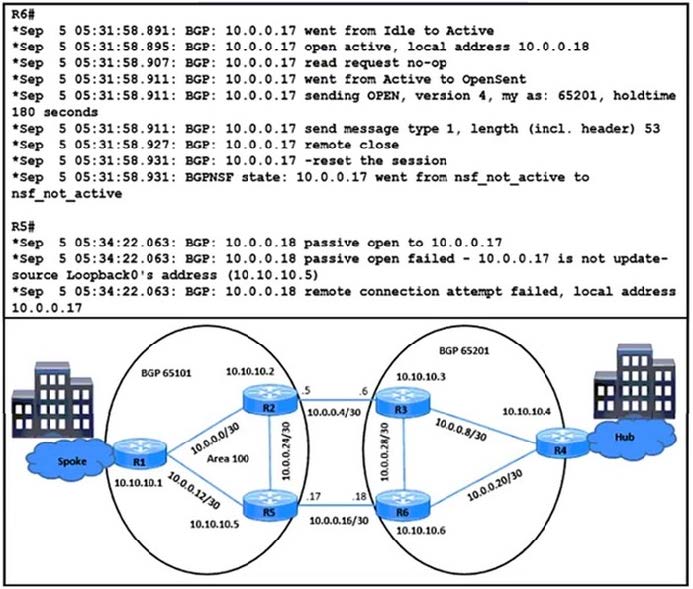

Refer to the exhibit.

2.

R2 and R5 receive traffic from R1 in AS 65101.

The traffic from spoke to hub is dropping. The operations team observes:

1. R2-R3 link is down due to the fiber cut.

3.

R3 and R6 receive traffic from R4 in AS 65201.

Which configuration resolves the issue?

A. R5(config)#router bgp 65101 R5(config-router)#neighbor 10.10.10.6 remote-as 65201 R5(config-router)#neighbor 10.10.10.6 update-source Loopback0 R5(config-router)#neighbor 10.10.10.6 ebgp-multihop 3

B. R5(config)#router bgp 65101 R5(config-router)#no neighbor 10.0.0.18 update-source Loopback0

C. R6(config)#router bgp 65101 R6(config-router)#no neighbor 10.0.0.17 update-source Loopback0

D. R6(config)#router bgp 65201 R6(config-router)#neighbor 10.10.10.5 remote-as 65101 R6(config-router)#neighbor 10.10.10.5 update-source Loopback0 R6(config-router)#neighbor 10.10.10.5 ebgp-multihop 3

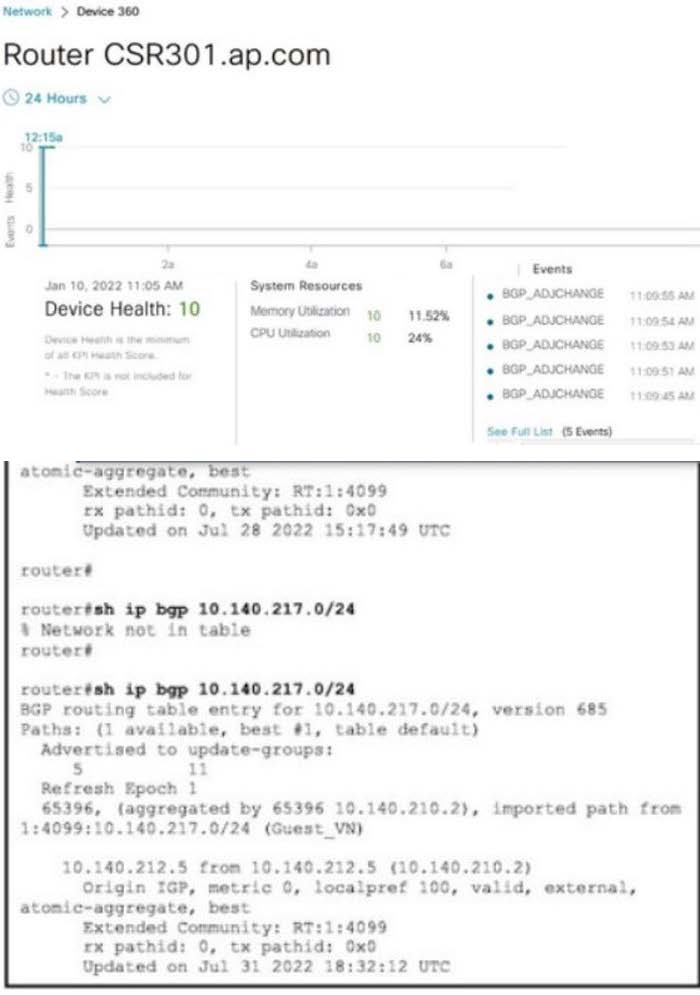

Refer to the exhibit.

In Cuco DNA Center, a network engineer identifies that BGP-learned networks are repeatedly withdrawn from peers. Which configuration must the engineer apply to resolve the Issue?

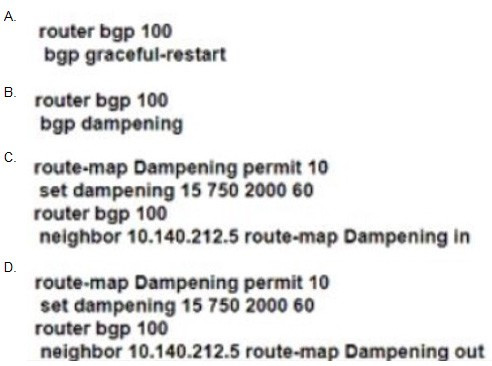

A. Option A

B. Option B

C. Option C

D. Option D
