An engineer must use OTV for layer 2 connectivity between data centers to support virtual machine between the customer sites. To support this requirement, the engineer must ensure the existence of the same default gateway on both sites. Additionally, the operations team report high bandwidth utilization on site A and wants to optimize the outbound traffic flows to use a DC exit point.

Which feature must be used to meet these requirement?

A. FHRP filter

B. Control group

C. Data group

D. ARP filter

The data center aggregation layer that uses IPv4 and IPv6 address space must act as a redundant Layer 3 gateway The solution must support a minimum of 240 virtual groups for an interface The data center aggregation layer hosts network devices from different vendors

Which FHRP solution meets these requirements?

A. HSRPv1

B. VRRPV3

C. VRRPv1

D. HSRPv2

An engineer is experiencing performance issues on a cisco UCS blade server. The B-series blade server contains four CPUs, most of which are idle. The engineer notices that the CPU is suffering from too many requests sent by the NIC. Additionally, the number of queues appears to be insufficient and only a single CPU is processing the network traffic.

Which policy must be used to alleviate these issues?

A. Ethernet adapter

B. vNIC placement

C. LAN connectivity

D. Dynamic vNIC connection

A data center uses Cisco Nexus 7000 Series Switch and contains two tenants, tenant A and tenant B.

1.

Tenant A uses IP addresses in the 10.2.30.41/24 to 10.2.30.64/24 range.

2.

Tenant B uses IP addresses in the 10.2.30.120/24 to 10.2.30.192/24 range. The engineer must implement a solution that:

1.

Isolates the traffic for each tenant as separate routing data and control planes.

2.

Physically partitions the Cisco Nexus device into separate multiple logical devices with separate management, failure domain isolation, and resource management. Which two technologies meet these requirements? (Choose two.)

A. VDC

B. vPC

C. VXLAN

D. VLAN

E. VRF

An engineer manages a multi-organization Cisco UCS fabric and requires a solution to streamline the daily operational tasks of creating service profile templates. The operations team is unfamiliar with programming languages and must have a solution that is written in an easy-to-read and declarative manner. The operations team also requires the tool to be flexible enough to support the creation of custom modules. The development team is familiar with the Python programming language and can develop these custom modules for the operations team.

Which tool meets these requirements?

A. Ansible

B. Puppet

C. CFEngine

D. Chef

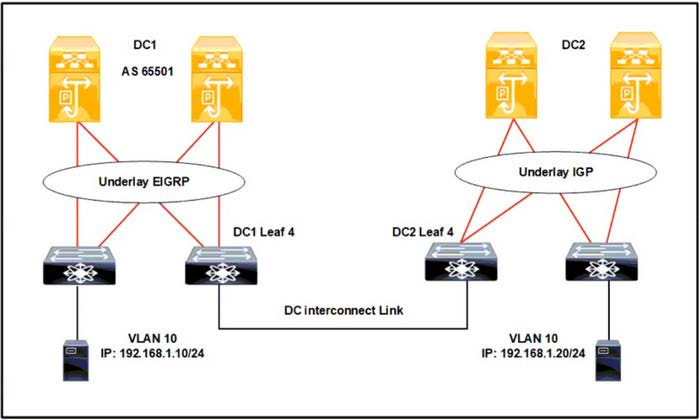

Refer to the exhibit.

The data center DC1 uses VXLAN technology. The company asked a service provider to design another data center called DC2 and stretch EVPN information between the data centers based on the same technology. The fabric requires:

1.

endpoint information propagated end-to-end across both data centers

2.

misconfiguration replicated from DC1 to DC2

Which actions must the design include in DC2 to meet these criteria?

A. Set BGP AS to 65500. Configure RIP as an underlay IGP.

B. Set BGP AS to 65501. Configure RIP as an underlay IGP.

C. Set BGP AS to 65501. Configure EIGRP as an underlay IGP.

D. Set BGP AS to 65500. Configure IGRP as an underlay IGP.

An engineer must design a Cisco SAN environment between two data centers for backup and replication purposes. The data centers are separated by 510 kilometers and are interconnected via a 16-Gbps WAN/MAN link. Which topology must be used to interconnect the data centers?

A. multi-switch

B. native Fibre Channel SAN extension

C. large-scale edge-core-edge

D. unified fabric

What must be configured in Cisco Intersight when Enum is selected as the data type in a workflow input?

A. Widget type

B. Regex

C. Secure

D. Object Selector

A storage administrator experiences a slow file transfer rate when archiving backup files on a tape library drive. The tape drive is connected directly to the Cisco Nexus 7009 switches. The file transfer rate gradually goes down with files that are over 100 GB in size. The requirement is for the file transfer rate to be consistent during the transfer window. Which two solutions meet this requirement? (Choose two.)

A. Compress the files to reduce the data size before copying to the tape drive.

B. Increase the tape drive disk size to increase the write speed.

C. Connect the tape drive with two 10G interfaces in vPC mode.

D. Perform a file transfer to the tape drive after business hours.

E. Split the files before copying them to the tape drive.

A network engineer designs a virtual network in a Cisco UCS Manager. The traffic must be explicitly forwarded from the vNIC on the server to a specific uplink Ethernet port on the Cisco fabric interconnect. Also, the server vNIC must use the same uplink Ethernet port after reboot. Finally, the design requires a QoS policy for remote direct memory access over converged Ethernet (RoCE v2). Which set of design features meets these requirements?

A. vNIC pool and Silver priority

B. vNIC template and Gold priority

C. server VLAN pool and Gold priority

D. LAN pin group and Platinum priority
