Click on the exhibit button below.

With fast reroute enabled, and given the following:

Two protected LSPs with the path R1-R2-R3

Both LSPs enable facility bypass and link protection.

When router R1 is the PLR, which router becomes the MP?

A. Router R1

B. Router R2

C. Router R3

D. Router R4

E. Router R5

Which of the following statements regarding the MPLS SWAP label operation is true?

A. The inner label will be exchanged with the MPLS outer label.

B. The inner label will be exchanged for a new label.

C. The outer label will be exchanged for a new label.

D. All labels will be exchanged for one new label.

E. All labels will be exchanged for an equal number of new labels.

Which of the following statements are true? Choose two answers

A. Selected labels from the FIB are populated to the LIB.

B. Selected labels from the LIB are populated to the LFIB.

C. Selected routes from the RIB are populated to the FIB.

D. Selected routes from the FIB are populated to the RIB.

E. All labels from the LIB are populated to the LFIB.

Which of the following statements regarding admin groups is FALSE?

A. Admin groups can be configured using the command "configure>router>mpls>admin-group".

B. CSPF uses the information defined by admin groups when paths are computed for constraint- based LSPs.

C. By default, interfaces for which MPLS has been enabled are in the default admin group.

D. A LSP can make use of admin groups for constraint-based path calculations by including or excluding the admin group

Which of the following about T-LDP is FALSE?

A. Link-based and T-LDP sessions may be configured on the same LSR.

B. T-LDP supports sessions between non-directly connected devices.

C. T-LDP can be configured between directly connected devices.

D. T-LDP Hello messages are sent to a multicast address.

Which of the following about an LSP protected with facility FRR is TRUE?

A. The LSP can use protection tunnels used by other LSPs.

B. The LSP can use facility and one-to-one FRR simultaneously.

C. The LSP is limited to link protection.

D. A detour protection tunnel is created for this LSP.

Which of the following about MPLS shortcuts for IGP on an Alcatel-Lucent 7750 SR is FALSE?

A. An IGP route takes priority over a transport tunnel.

B. Both LDP and RSVP-TE based tunnels can be used.

C. MPLS tunnels can be used to resolve the prefixes learned via IGP.

D. Multiple MPLS tunnels can be installed in the FIB.

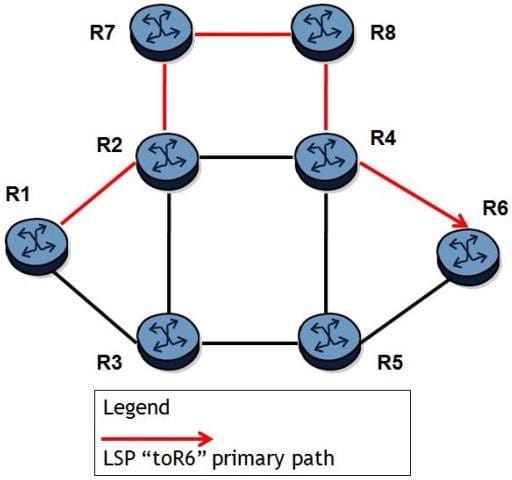

Click on the exhibit.

A fully loose LSP "toR6" is configured. All links have the same cost and all routers are Alcatel- Lucent 7750 SRs. The LSP currently traverses the path R1-R2-R7-R8-R4-R6 and the resignal timer is enabled. Which of the following about this LSP is FALSE?

A. The LSP will switchover to another path if a failure occurs.

B. The LSP will switchover to a better path as soon as it is available.

C. CSPF must be enabled for this LSP to attempt to find a better path.

D. The LSP will switchover to a better path in a MBB fashion.

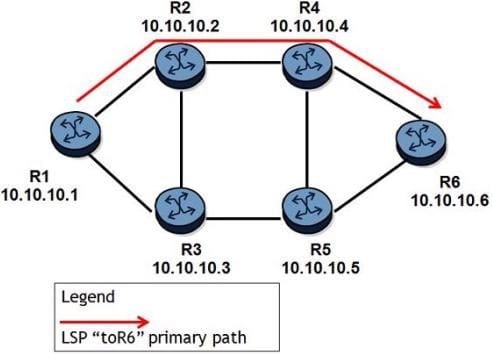

Click on the exhibit.

An LSP path is established on router R1 toward router R6. If there is a problem on router R4, but the link between R2 and R4 remains up, which of the following will affect the failure detection time?

A. The time router R2 takes to receive a PATH Error message from router R4.

B. The time router R2 takes to find out a number of RSVP Hello messages have been missed.

C. The time router R2 takes to send a PATH Tear message to the head-end router.

D. The time router R2 takes to receive a PATH message from router R4 after a PATH refresh interval.

Which of the following devices inspects the MPLS header in the received packet, and exchanges it for a new MPLS header?

A. iLER

B. LER

C. LSR

D. PE

E. eLER
