Router R3 signals an LSP, reserving 1Gbps bandwidth on a 10Gbps link. RSVP configuration limits reservable bandwidth to 20 percent on the egress interface. Which of the following statements is true?
A. The egress RSVP interface has 80 percent bandwidth unreserved.
B. LSPs can reserve an additional 9.9 Gbps bandwidth on this RSVP interface.
C. The head end reserves 100Mbps for the LSP
D. The egress RSVP interface has 1 Gbps bandwidth unreserved.
Which of the following statements regarding the last two octets of the LDP identifier is true?
A. It is always a random 16-bit number.
B. It is always zero for per-interface label space.
C. It is always non-zero.
D. It is always zero for per-platform label space.
E. It is always non-zero for per-platform label space.

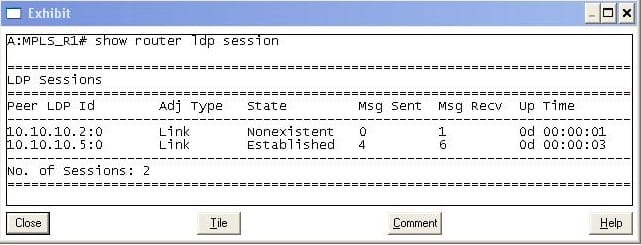

Click on the exhibit button below.

Under which condition might the peer LDP ID 10.10.10.2:0 entry show state "Nonexistent"?
A. When the interface to the peer router is down.
B. When router R1 has no route to the peer address 10.10.10.2.
C. When the adjacency between the two routers fails.
D. When the targeted session is not yet configured.
