Oracle Fusion Middleware 11g: Build Applications with Oracle Forms: 1Z0-151

Correct Answer: E

Correct Answer: A

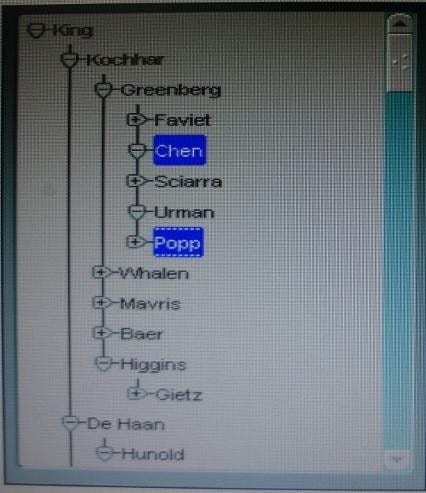

Both Chen and Popp are selected, so Multi-selection is set to Yes (not B). + and symbols are displayed, so Show Symbols is yes (not B, C, D). Allow Empty Branches is set to Yes (so A is ok), see note below.

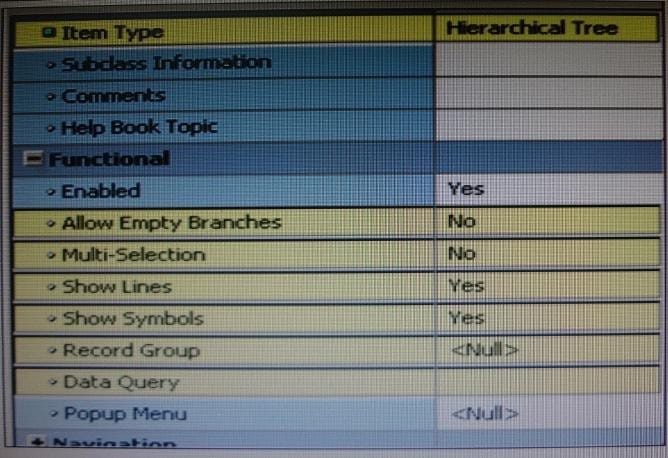

Note: Setting Hierarchical Tree Item Properties Hierarchical Tree properties include the following:

*

Item Type: Must be set to Hierarchical Tree

*

Allow Empty Branches: Yes / No. No is the default.

If set to Yes, all leaf nodes will initially display in the tree with the plus sign (+) next to it, indicating that expansion is possible, even when there is nothing to expand. If set to Yes, the Show Symbols property must also be set to Yes.

If set to No, leaf nodes will not have an expand/collapse symbol

*

Multi Selection: Whether multiple nodes may be selected at one time No is the default.

*

Show Lines: Whether a hierarchical tree displays lines leading up to each node Yes is the default.

*

Show Symbols: Whether a hierarchical tree should display + or - symbols in front of each branch node

*

Record Group: Name of the record group from which the hierarchical tree derives its values

*

Data Query: Specifies the query-based data source

Correct Answer: AD

Once you have created your application in Forms Developer, you are ready for application Web

deployment. Oracle Forms Services accesses an application in Oracle Fusion Middleware through a

specified URL. The URL then accesses the HTTP Listener, which communicates with the Listener Servlet.

The Listener Servlet starts a Forms run- time process (frmweb.exe on Windows or frmweb on UNIX and

Linux) for each Forms Services session.

Note:

To deploy a basic form with the default parameters set up by the installer:

1.

Create your application in Forms Developer and save it. The .fmb file is a design time file that can only

be opened in Forms Developer. The .fmx file is the run-time file created when you compile the .fmb and is

used for Web deployment.

2.

Modify the formsweb.cfg file so that Oracle Forms Services can access your application module.

3.

Make sure the .fmx file location is specified in the FORMS_PATH environment variable.

4.

To modify an environment file, select the file in the Environment Configuration page of Fusion

Middleware Control and add or edit environment variables as needed by your application

5.

Enter the name of your application in the URL as shown:

http://example.com:8888/forms/frmservlet?

where "example" is the hostname of your computer and "8888" is the port used by your HTTP Listener.

Once you have created a configuration section, add "config=" and the name of the configuration section. In

this example, the URL to access hrapp.fmx is:

http://example.com:8888/forms/frmservlet?config=my_

application
