VMware SD-WAN Troubleshoot: 5V0-41.20

Scenario 1:

The Dallas Branch location is having issues getting activated. The local network administrator is aware that the Edge device received a DHCP address and was able to connect to the internet. The Orchestrator is reporting the Edge as Down. No other changes were made post activation.

A network administrator is tasked with enabling SD-WAN at three branch locations. A topology has been provided for reference. For each site, the administrator is having issues bringing edges

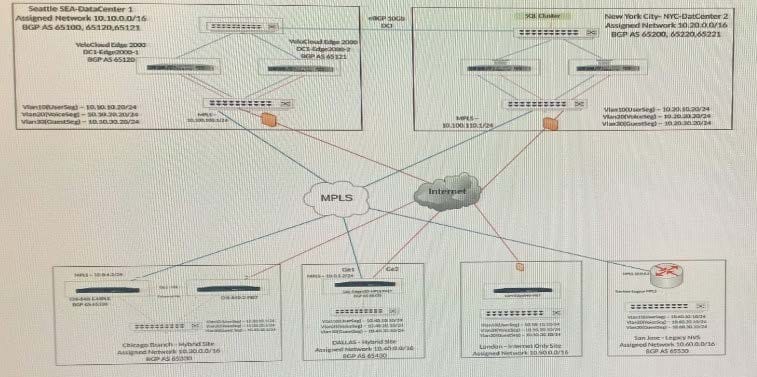

online, as another administrator has gone ahead and created a configuration ahead of time. The organization has several branch sites. One is am Internet-only site and two are Hybrid locations with both internet and MPLS. The last location is MPLS only. There are hub data center locations in this environment as well. Please refer to the topology.

Refer to the Exhibit(s).

What is the cause of this issue?

A. The activation link did not specify the updated image location requiring the Edge to be re-activated.

B. The activation link did not contain any post-activation configuration to allow the Orchestrator to communicate with the Edge.

C. The Edge will be offline for about 4 hours until it has completed the factory image installation.

D. The activation link contained incorrect configurations for WAN overlays and WAN interfaces.

Scenario 3:

After resolving numerous connectivity Issues throughout the various branch sites, connectivity between applications and users is finally present. The network administrator is informed that during certain tests, applications are not performing as they are expected to. Users report that call quality has not fully improved and that some of their calls either drop or have poor voice quality where the conversation is breaking up. Other users are noticing that file transfers are slower than expect. A group of users from a few sites have reported slowness in accessing internal and external applications.

Exhibit.

The network administrator has been made aware that Chicago is receiving traffic from non- SD-WAN sites, bottlenecking Chicago's interfaces. The network administrator's VMware SE has mentioned using the uplink feature to help resolve this.

What are two ways the uplink feature should be used in this scenario? (Choose two.)

A. Set the uplink community to forward traffic to a group of neighbors.

B. Direct all traffic to that neighbor designated as an uplink,

C. Stop mutual redistribution of routes from underlay and overlay.

D. Prevent the site in question from becoming a transit site.

Scenario 3:

After resolving numerous connectivity Issues throughout the various branch sites, connectivity between applications and users is finally present- The network administrator is informed (hat during certain tests, applications are not performing as they are expected to. Users report that call quality has not fully improved and that some of their calls either drop or have poor voice quality where the conversation is breaking up. Other users are noticing that file transfers are slower than expect. A group of users from a few sites have reported slowness in accessing internal and external applications.

Exhibit.

Which metrics can a network administrator verify in the QoE screen to determine the overall health of Underlay and Overlay?

A. Jitter Packet Loss, Speed.

B. Jitter, Packet Loss, Latency.

C. Jitter, Speed, Latency.

D. Packet Loss, Latency, Speed.
